在Mac上使用Multipass运行Ubuntu虚拟机

Multipass 是一个轻量虚拟机管理器,是由 Ubuntu 运营公司 Canonical 所推出的开源项目。目前支持 LinuxWindowsmacOSMultipass 提供了一个命令行工具,通过它可以在几分钟内启动并运行一个崭新的 Ubuntu 虚拟机

Install

下载安装包

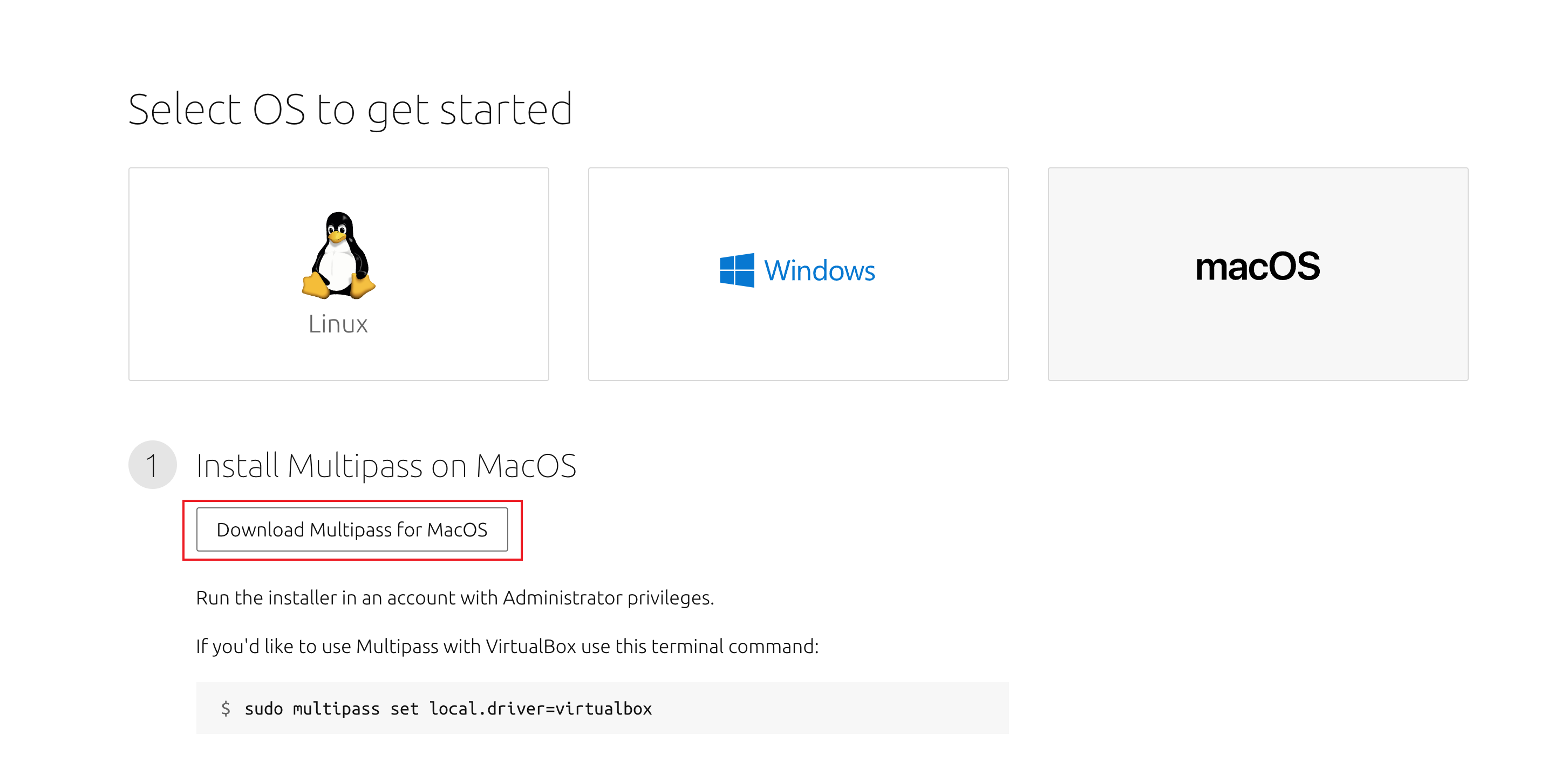

Multipass官网下载安装包

Homebrew 安装

没有安装 Homebrew? 点击这里安装 Homebrew

1
2
3
4
5
# 安装
$ brew install multipass

# 如果想要更新multipass版本
$ brew upgrade multipass

Use

首先先看一下 multipass 有哪些命令

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
$ multipass  -h
Usage: multipass [options] <command>
Create, control and connect to Ubuntu instances.

This is a command line utility for multipass, a
service that manages Ubuntu instances.

Options:
-h, --help Displays help on commandline options.
--help-all Displays help including Qt specific options.
-v, --verbose Increase logging verbosity. Repeat the 'v' in the short option
for more detail. Maximum verbosity is obtained with 4 (or more)
v's, i.e. -vvvv.

Available commands:
alias Create an alias
aliases List available aliases
delete Delete instances
exec Run a command on an instance
find Display available images to create instances from
get Get a configuration setting
help Display help about a command
info Display information about instances
launch Create and start an Ubuntu instance
list List all available instances
mount Mount a local directory in the instance
networks List available network interfaces
purge Purge all deleted instances permanently
recover Recover deleted instances
restart Restart instances
set Set a configuration setting
shell Open a shell on a running instance
start Start instances
stop Stop running instances
suspend Suspend running instances
transfer Transfer files between the host and instances
umount Unmount a directory from an instance
unalias Remove an alias
version Show version details

Launch

我们使用 multipass 来创建一个 Ubuntu 虚拟机。multipass 中也有镜像的概念,通过 multipass find 命令可以查看当前有哪些镜像

1
2
3
4
5
6
7
8
$ multipass find
Image Aliases Version Description
18.04 bionic 20220104 Ubuntu 18.04 LTS
20.04 focal,lts 20220111 Ubuntu 20.04 LTS
21.04 hirsute 20220113 Ubuntu 21.04
21.10 impish 20220111 Ubuntu 21.10
anbox-cloud-appliance latest Anbox Cloud Appliance
minikube latest minikube is local Kubernetes

使用 multipass launch 命令创建一个 Ubuntu20.04 的虚拟机

1
2
3
4
# -n 虚拟机名称 -c CPU -m 内存 -d 磁盘大小  20.04 指定镜像
$ multipass launch -n ubuntu -c 2 -m 4G -d 10G 20.04
Launched: ubuntu

launch 时更多参数可以通过 multipass launch -h 查看

List && Info

查看运行中的虚拟机列表

1
2
3
$ multipass list
Name State IPv4 Image
ubuntu Running 192.168.64.4 Ubuntu 20.04 LTS

还可以通过 multipass info 查看虚拟机详细信息

1
2
3
4
5
6
7
8
9
10
$ multipass info ubuntu
Name: ubuntu
State: Running
IPv4: 192.168.64.4
Release: Ubuntu 20.04.3 LTS
Image hash: e9cae16ff305 (Ubuntu 20.04 LTS)
Load: 0.00 0.00 0.00
Disk usage: 1.2G out of 4.7G
Memory usage: 161.6M out of 3.8G
Mounts: --

Exec && Shell

进入虚拟机执行命令,有两种方式可以进入虚拟机执行命令。

exec

1
2
3
4
5
6
7
$ multipass exec ubuntu uname
Linux

# 如果要传递参数就需要用以下这种格式
$ multipass exec ubuntu -- uname -a
Linux ubuntu 5.4.0-94-generic #106-Ubuntu SMP Thu Jan 6 23:59:31 UTC 2022 aarch64 aarch64 aarch64 GNU/Linux

shell

使用 exec 时每次都要添加 multipass exec ubuntumultipass 还支持直接进入虚拟机的 shell

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
$multipass shell ubuntu
Welcome to Ubuntu 20.04.3 LTS (GNU/Linux 5.4.0-94-generic aarch64)

* Documentation: https://help.ubuntu.com
* Management: https://landscape.canonical.com
* Support: https://ubuntu.com/advantage

System information as of Sun Jan 16 15:04:58 CST 2022

System load: 0.0
Usage of /: 26.6% of 4.68GB
Memory usage: 5%
Swap usage: 0%
Processes: 119
Users logged in: 0
IPv4 address for enp0s1: 192.168.64.4
IPv6 address for enp0s1: fddf:1872:81b9:5408:5054:ff:fea7:7dc4


0 updates can be applied immediately.


Last login: Sun Jan 16 15:03:53 2022 from 192.168.64.1
To run a command as administrator (user "root"), use "sudo <command>".
See "man sudo_root" for details.

ubuntu@ubuntu:~$ uname
Linux
ubuntu@ubuntu:~$

mount && transfer

multipass 也提供了宿主机和虚拟机之间同步文件

mount

顾名思义,mount 可以将宿主机和虚拟机中的目录或者文件进行挂载。mount 后无论在宿主机还是虚拟机内进行操作,两边看到的都是一样的。熟悉 docker 的会知道这和 docker -v 参数一样。

1
2
$ multipass mount /var/ubuntu/test  ubuntu:/test

transfer

multipass 还提供了 transfer 命令,用来在宿主机和虚拟机直接传输文件,但使用 transfer 命令拷贝的文件,在拷贝完成后就不会同步,相当于宿主机和虚拟机对应两份文件。

1
2
3
$ echo hello > test.txt
$ multipass transfer ./test.txt ubuntu:/home/ubuntu/test.txt

Delete

如果要删除一个虚拟机也很方便

1
2
3
4
$ multipass stop ubuntu
$ multipass delete vm01
$ multipass purge

cloud-init

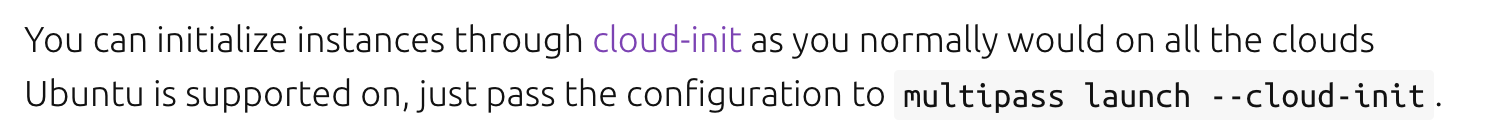

multipass官方文档中说到

意思是可以在创建虚拟机时通过 —cloud-int 指定 cloud-init.yml 文件。

有什么用呢?比方说我们每个虚拟机都要配置 ssh 或者需要通过 apt 安装一些工具,就可以将这些操作都写到 cloud-init.yml 文件中,这样每次创建虚拟机时就会自动执行这些环境的配置。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
#cloud-config

# run commands
# default: none
# runcmd contains a list of either lists or a string
# each item will be executed in order at rc.local like level with
# output to the console
# - runcmd only runs during the first boot
# - if the item is a list, the items will be properly executed as if
# passed to execve(3) (with the first arg as the command).
# - if the item is a string, it will be simply written to the file and
# will be interpreted by 'sh'
#
# Note, that the list has to be proper yaml, so you have to quote
# any characters yaml would eat (':' can be problematic)
runcmd:
- [ ls, -l, / ]
- [ sh, -xc, "echo $(date) ': hello world!'" ]
- [ sh, -c, echo "=========hello world'=========" ]
- ls -l /root
# Note: Don't write files to /tmp from cloud-init use /run/somedir instead.
# Early boot environments can race systemd-tmpfiles-clean LP: #1707222.
- mkdir /run/mydir
- [ wget, "http://slashdot.org", -O, /run/mydir/index.html ]

更多关于cloud-init.yml 文件的写法
